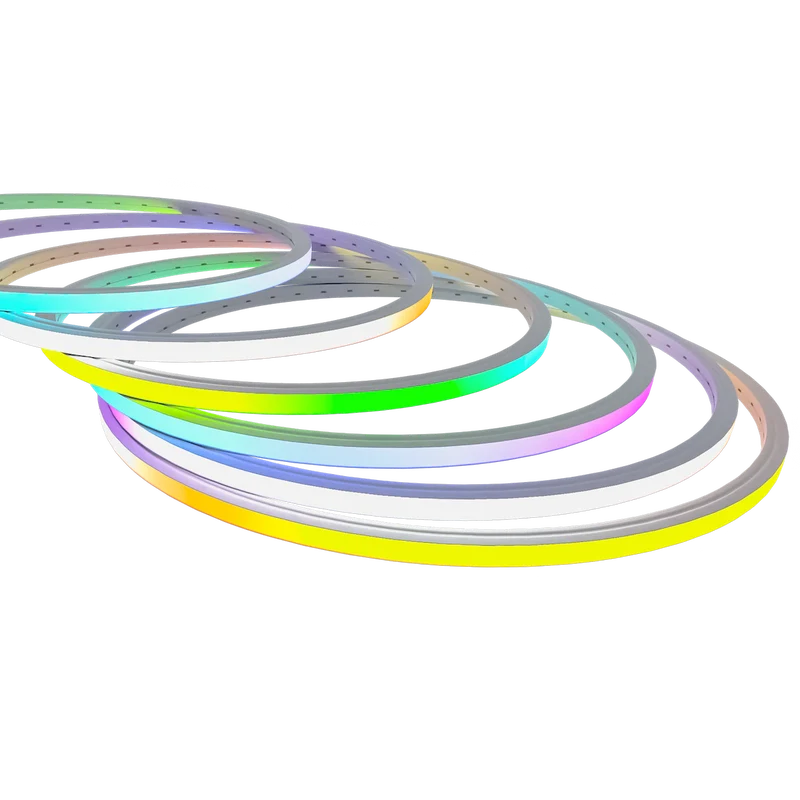

NeoFlux Pro V Series Pixel SPI RGBW Custom Cut

SERIES
PZM-NFPROV-PXLSPI-RGBW-CC
Add to Compare
NeoFlux Pro is the newest evolution in direct view lighting for seamless illumination of darkened architectural design. Cuttable every 4.92”, each segment is addressable with DMX 512 protocol, enabling independent control of dynamic color and design. Sleek in profile and simple to install, NeoFlux Pro offers pixel level control for endless interior or exterior applications, including effects such as chasing, popcorning, waves, and strobe.
NeoFlux Pro V Series Pixel SPI RGBW Custom Cut
NeoFlux Pro V Series Pixel SPI RGBW Custom Cut
Input Voltage
24V DC
Wattage
4.42 W/ft
CCT
Digital Pixel RGBW
Lumens
134
Cut Increment
4.92in
Max Run
16.4ft
Rated Life (Hr)
30,000 Hours
Dimming
SPI
Finish
White
Control
SPI UCS2904B
Weight
0.1 lbs
Width
0.63 Inch
Length
Custom Cut
Height
0.59 Inch
Safety Rating
cULus Listed
IP Rating
IP67
Location Rating
Wet
Indoor
Y
Outdoor
Y
Part Number Length Input Voltage CCT Wattage Lumens Max Run IP Rating
PZM-NFPROV-PXLSPI-RGBW-CC Custom Cut 24V DC Digital Pixel RGBW 4.42 W/ft 134 16.4ft IP67

Specification Sheets
