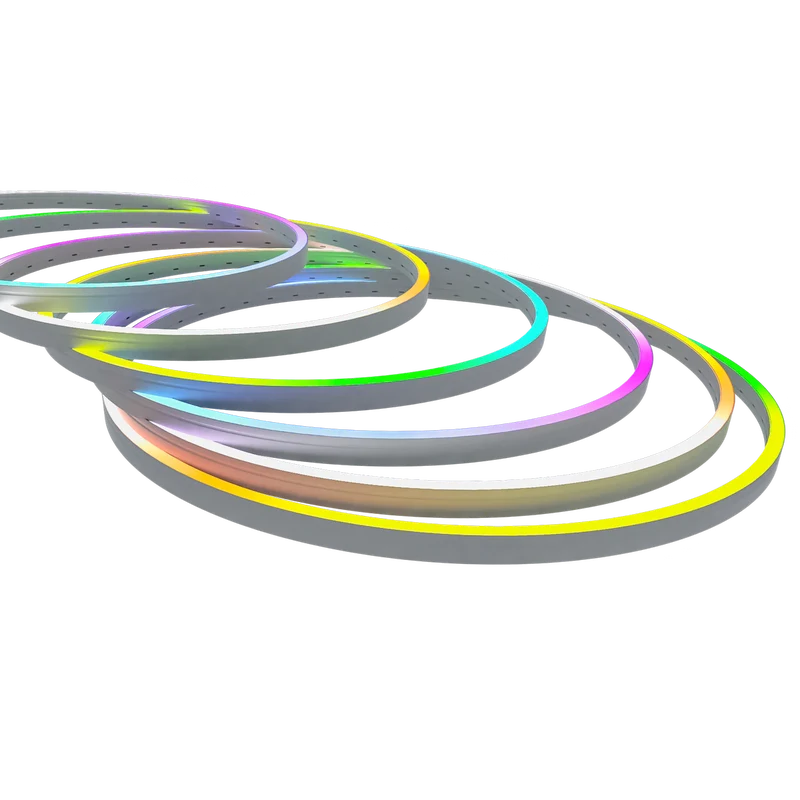

NeoFlux Pro L Series Pixel SPI RGBW Custom Cut
SKU
Add to Compare
PZM-NFPROL-PXLSPI-RGBW-CC
NeoFlux Pro is the newest evolution in direct view lighting for seamless illumination of darkened architectural design. Cuttable every 4.92”, each segment is addressable with SPI protocol, enabling independent control of dynamic color and design. Sleek in profile and simple to install, NeoFlux Pro offers pixel level control for endless interior or exterior applications, including effects such as chasing, popcorning, waves, and strobe.
Input Voltage
24V DC
Wattage
4.57 W/ft
CCT
Digital Pixel RGBW
Lumens
97
Cut Increment
4.92in
Max Run
16.4ft
Rated Life (Hr)
30,000 Hours
Dimming
SPI
Finish
Black
Control
SPI UCS2904B
Weight
0.10 lbs
Width
0.47 Inch
Length
Custom Cut
Height
0.79 Inch
Safety Rating
cULus Listed
IP Rating
IP67
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Part Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating |
|---|---|---|---|---|---|---|---|
| PZM-NFPROL-PXLSPI-RGBW-CC | Custom Cut | 24V DC | Digital Pixel RGBW | 4.57 W/ft | 97 | 16.4ft | IP67 |
