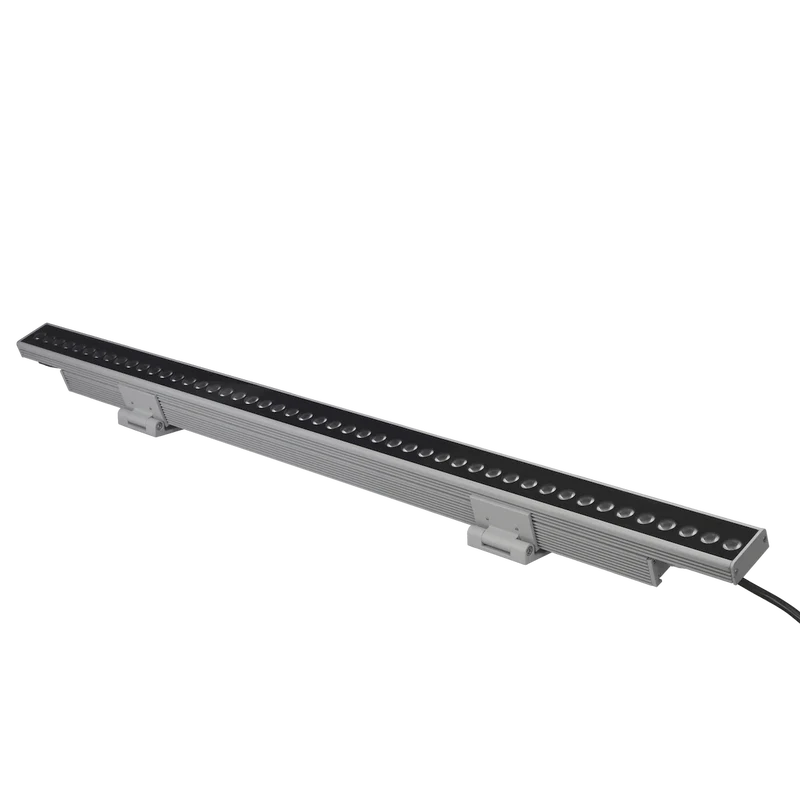

Senik Graze Lit 3000K 4Ft 35 Optic

SERIES
PZM-WGL4-UNV-010V-30K-35-SA
Add to Compare
S?nik Graze L?t Static White 3000K, 48�, 35D optic, 100-277V, proprietary mounting bracket (SA finish). Lead wire 12� to end of connector, tail wire 4� to end of connector. Satin Aluminum (RAL9006) housing finish. 0-10V
Senik Graze Lit 3000K 4Ft 35 Optic
Senik Graze Lit 3000K 4Ft 35 Optic
Input Voltage
100-277V AC
Input Frequency
50-60Hz
CCT
3000K
CRI
80+
Lumens
4625
Max Run
21/49 units
Optics (Degree)
35 degrees
Rated Life (Hr)
70,000 Hours
Temperature Range
-40C (-40F) to 50C (122F) degrees
Dimming
0-10V 5-100%
Finish
Satin Aluminum
Quantity
48
Weight
2.3606 lbs
Width
4.92 Foot
Length
4 Foot
Height
4.33 Foot
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
IP Rating
IP66
ROHS
N
Class 2
N
Part Number Length Input Voltage CCT CRI Lumens Max Run IP Rating UOM
PZM-WGL4-UNV-010V-30K-35-SA 4 Foot 100-277V AC 3000K 80+ 4625 21/49 units IP66 Each

Specification Sheets

Sēnik Graze Līt Static White 4ft
