Senik Graze Lit 3000K 1Ft 15x40 Optic
SKU
Add to Compare
PZM-WGL1-UNV-010V-30K-15X40-SA

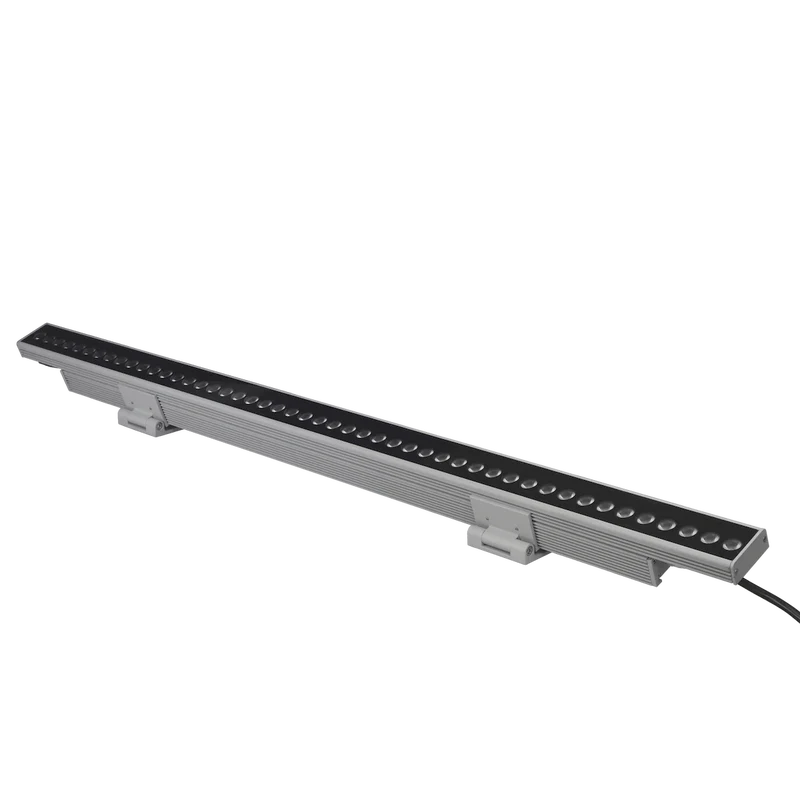

S?nik Graze L?t Static White 3000K, 12", 15x40 optic, 100-277V, proprietary mounting bracket (SA finish). Lead wire 12� to end of connector, tail wire 4� to end of connector. Satin Aluminum (RAL9006) housing finish. 0-10V
Input Voltage
100-277V AC
Input Frequency
50-60Hz
CCT
3000K
CRI
80+
Lumens
1192
Max Run
70/196 units
Optics (Degree)
15 X 40 degrees
Rated Life (Hr)
70,000 Hours
Temperature Range
-40C (-40F) to 50C (122F) degrees
Dimming
0-10V 5-100%
Finish
Satin Aluminum
Quantity
12
Weight
4.66 lbs
Width
4.92 Foot
Length
1 Foot
Height
4.33 Foot
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
IP Rating
IP66
ROHS
N
Class 2
N
| Part Number | Length | Input Voltage | CCT | CRI | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| PZM-WGL1-UNV-010V-30K-15X40-SA | 1 Foot | 100-277V AC | 3000K | 80+ | 1192 | 70/196 units | IP66 | Each |
