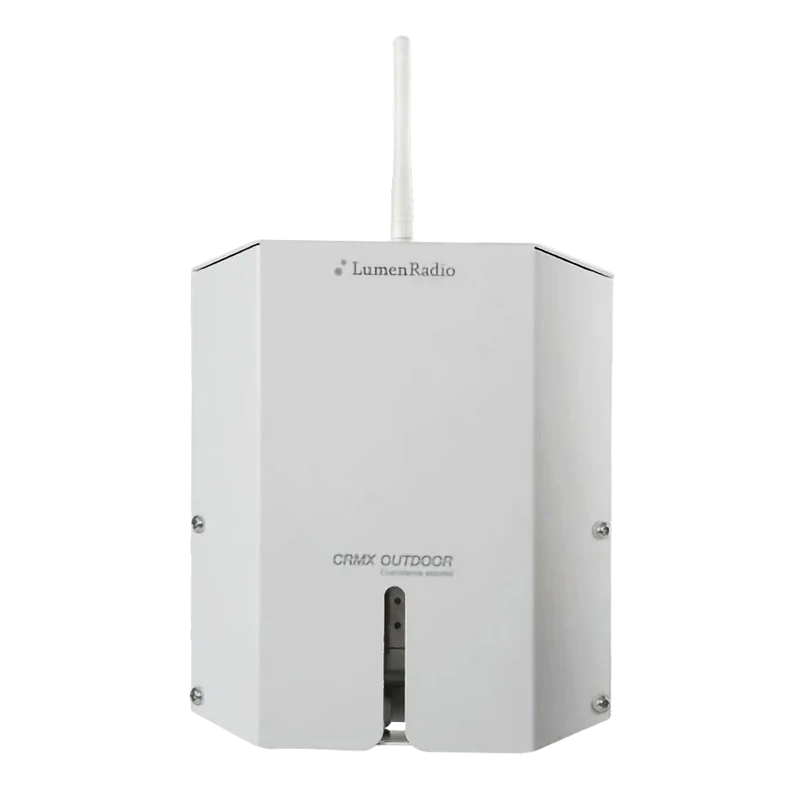

DMX Wireless Receiver w/Lumenradio

SERIES
PZM-WDMX-REC-RDM
Add to Compare

Combined with a LumenRadio transmitter, the new wireless DMX receiver can extend your DMX control capabilities. Mount on the wall or in an enclosure (sold separately) for outdoor use. With multiple DMX port types this wireless receiver provides professional and reliable DMX signaling.

  • Manage DMX/RDM systems wirelessly without the need to hardwire from controller to receiver
  • Requires LumenRadio CRMX Nova™ transmitter (sold separately); each transmitter can pair to multiple receivers
  • Up to 1/4 mile signal range with clear line of sight
  • Environmental factors may limit range
  • Multiple types of DMX/RDM signal ports: XLR 3pin, RJ45, screw terminals
  • Aluminum housing
  • LED indicators show signal intensity
  • 5 year warranty
DMX Wireless Receiver w/Lumenradio
DMX Wireless Receiver w/Lumenradio
Input Voltage
12-24V DC
Wattage
.0.5 W
Finish
Black
Control
Wireless DMX
Weight
0.7768 lbs
Width
2.562 Inch
Length
6.125 Inch
Height
1.406 Inch
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
ROHS
N
Class 2
N
Part Number Length Input Voltage Wattage UOM
PZM-WDMX-REC-RDM 6.125 Inch 12-24V DC .0.5 W Each
