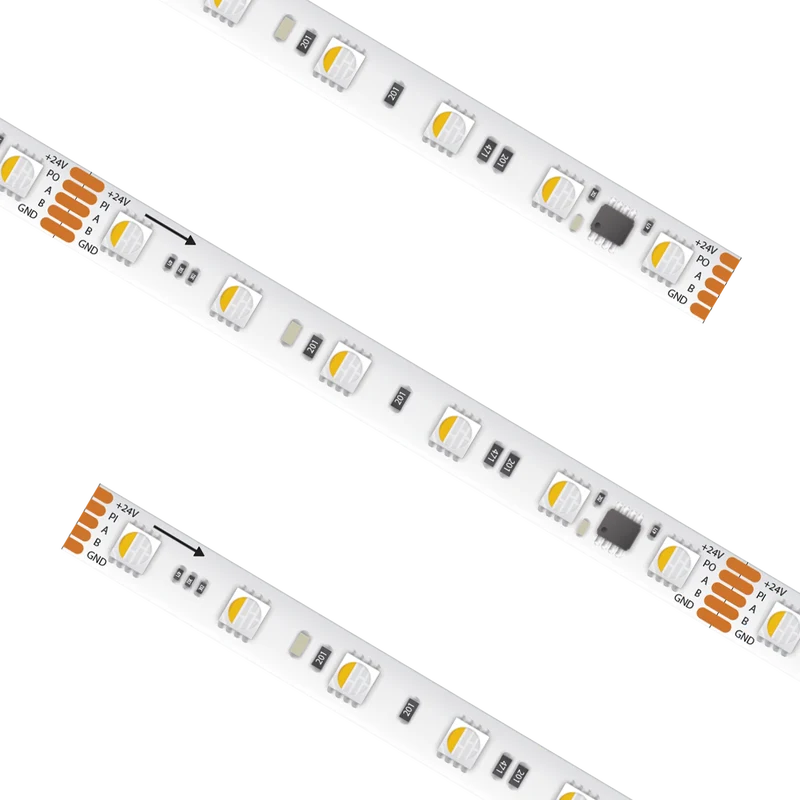

RGBW Dynamic Tape Light DMX Controlled 16.4Ft
SKU
Add to Compare
PZM-TLPXL-20-24V-RGBW6-16
For the ultimate tape light installation that requires a bit of creative customization and design innovation, Pixel RGBW addressable tape light is the perfect option. Featuring DMX addressable diodes, Pixel tape allows lighting designers to create seamless chasing effects or color dynamics for unforgettable and impactful lighting design.
- RGB+3000K warm white dynamic pixel color mixing capabilities
- Create millions of color combinations for impactful installations
- Features SMD 5050 RGBW LEDs with 5 step SDCM
- Lumen output ranging up to 241Lm per foot (3000K)
- Cuttable every 3.94” with 16.4ft max run
- Easy installation featuring 3M VHB adhesive backing
- IP20 uncoated
- Control via DMX for color and dimming
- cULus Listed dry locations
- 50,000 hours rated life
Input Voltage
24V DC
Wattage
6.1 W/ft
CCT
Digital Pixel RGBW
CRI
90+
Lumens
95
Cut Increment
3.94 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
DMX512 0 - 100%
Spacing
16.67mm
Weight
3.33 lbs
Width
0.03 Foot
Length
16.4 Foot
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
IP Rating
IP20
Location Rating
Dry
Indoor
Y
ROHS
N
FCC
N
Class 2
N
Class II
N
| Part Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PZM-TLPXL-20-24V-RGBW6-16 | 16.4 Foot | 24V DC | Digital Pixel RGBW | 90+ | 6.1 W/ft | 95 | 16.4 ft | IP20 | Each |
Specification Sheets
Instruction Manuals
IES Files
