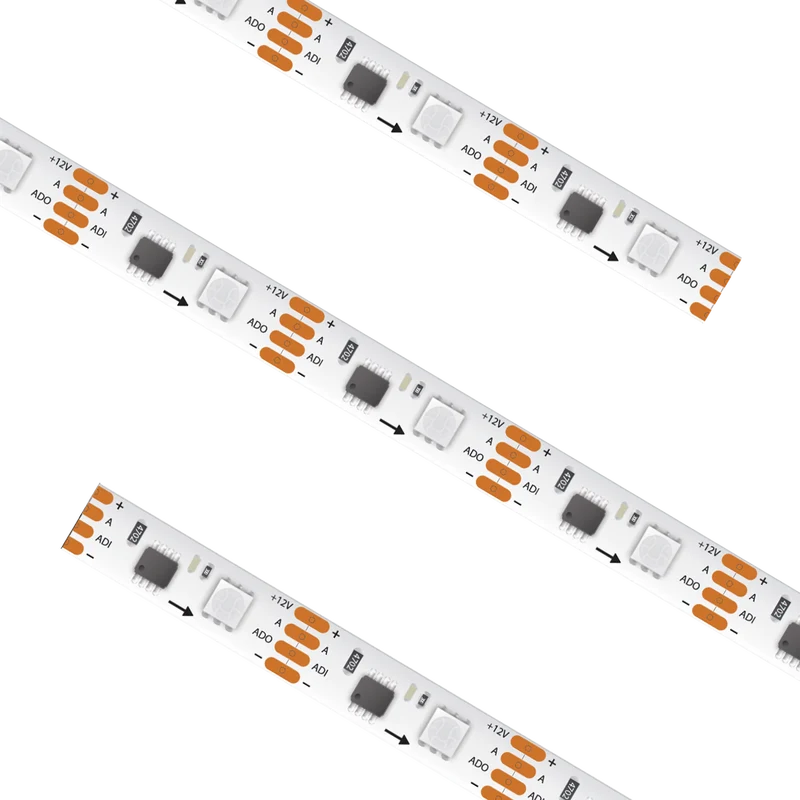

RGB Pixel Tape Light DMX Controlled 16.4Ft
SKU
Add to Compare
PZM-TLPXL-20-12V-RGB1-16
For the ultimate tape light installation that requires a bit of creative customization and design innovation, Pixel RGB addressable tape light is the perfect option. Featuring DMX addressable diodes, Pixel tape allows lighting designers to create seamless chasing effects or color dynamics for unforgettable and impactful lighting design.
- DMX addressable RGB LEDs every single diode
- Create millions of color combinations perfect for impactful installations
- Lumen output up to 35Lm per foot while consuming only 2W per foot
- Control via DMX for color and sequencing
- Compatible with most third party DMX controls
- Run lengths up to 16.4 feet and cuttable every LED at 1.31"
Input Voltage
12V DC
Input Frequency
60Hz
Wattage
2 W/ft
CCT
RGB
Lumens
35
Cut Increment
1.31 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
DMX512 0 - 100%
Spacing
33.3 mm
Weight
0.36 lbs
Width
0.03 Foot
Length
16.4 Foot
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
IP Rating
IP20
Location Rating
Dry
Indoor
Y
ROHS
N
FCC
N
Class 2
N
Class II
N
| Part Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| PZM-TLPXL-20-12V-RGB1-16 | 16.4 Foot | 12V DC | RGB | 2 W/ft | 35 | 16.4 ft | IP20 | Each |
Specification Sheets
Instruction Manuals
IES Files
