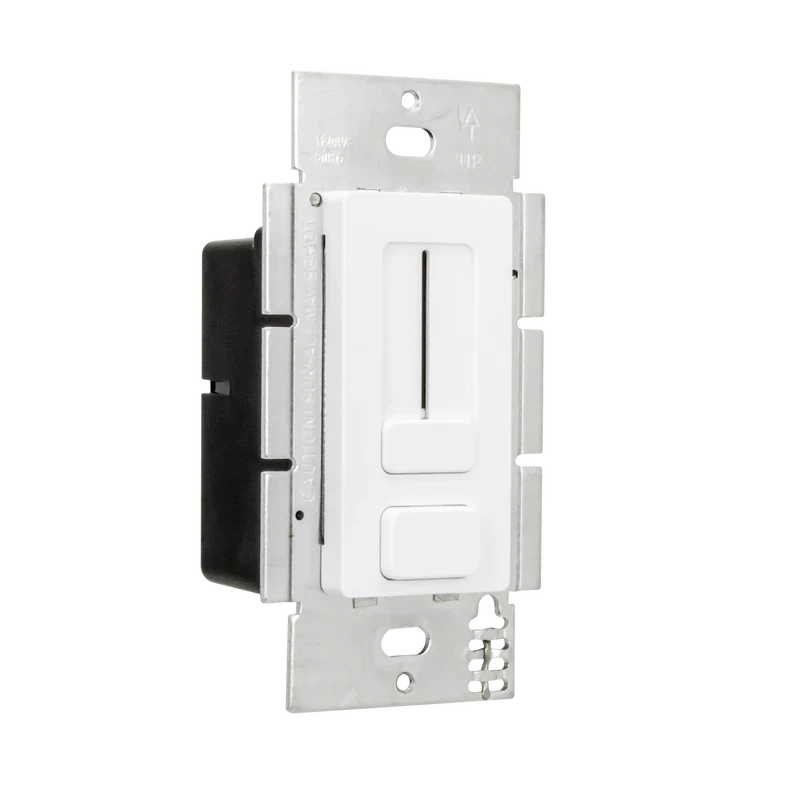

Switchex Dimmer and Driver in One 100 Watts 24V DC
SKU
Add to Compare
PZM-SWX24V-120V-100
24V ~ 100 Watt LED Dimmer Switch + LED Power Supply in one; 120V AC input, DC Output, Fits in standard single gang box; Includes 3 faceplates in Gloss White, Gloss Almond, Gloss Brown (trim plate not included)
Input Voltage
120V AC
Output Voltage
24V DC
Wattage
100 W
Power Factor
>0.9 @ 120VAC 60Hz max load
Temperature Range
0C (32F) to 40C (104F) degrees
Dimming
1-100%
Weight
0.60 lbs
Width
2.12 Inch
Length
1.37 Inch
Height
4.13 Inch
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
Location Rating
Dry
Indoor
Y
Outdoor
N
ROHS
N
FCC
Y
Class 1
N
Class 2
Y
Class II
N
| Part Number | Length | Input Voltage | Wattage | UOM |
|---|---|---|---|---|
| PZM-SWX24V-120V-100 | 1.37 Inch | 120V AC | 100 W | Each |
