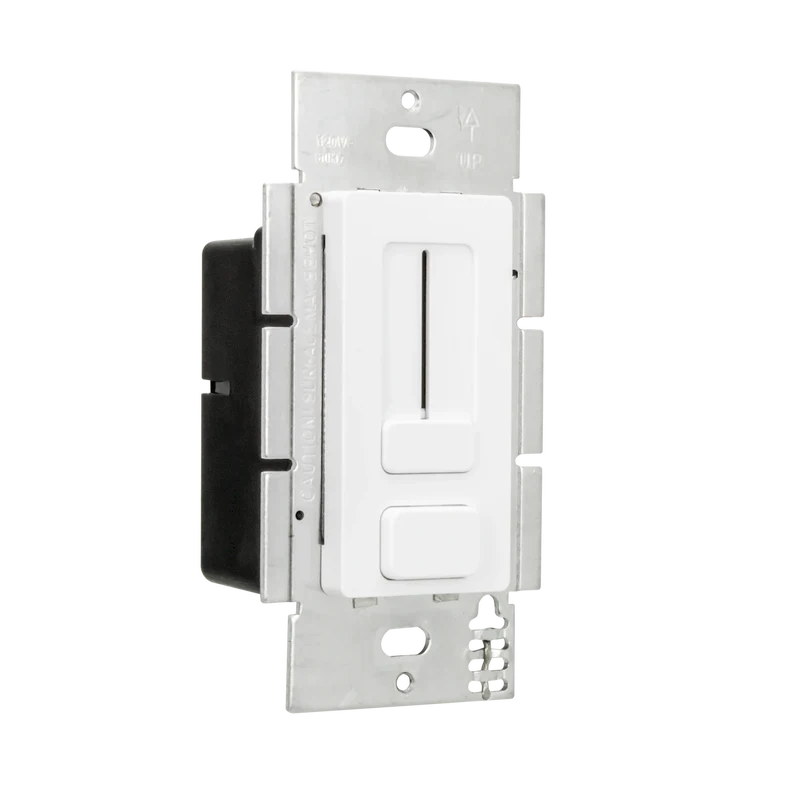

Switchex Dimmer and Driver in One 60 Watts 12V DC

SKU
PZM-SWX12V-120V-60
Add to Compare
12V ~ 60 Watt LED Dimmer Switch + LED Power Supply in one; 120V AC input, DC Output, Fits in standard single gang box; Includes 3 faceplates in Gloss White, Gloss Almond, Gloss Brown (trim plate not included)
Switchex Dimmer and Driver in One 60 Watts 12V DC
Switchex Dimmer and Driver in One 60 Watts 12V DC Switchex Dimmer and Driver in One 60 Watts 12V DC Switchex Dimmer and Driver in One 60 Watts 12V DC Switchex Dimmer and Driver in One 60 Watts 12V DC Switchex Dimmer and Driver in One 60 Watts 12V DC Switchex Dimmer and Driver in One 60 Watts 12V DC
Input Voltage
120V AC
Output Voltage
12V DC
Wattage
60 W
Power Factor
>0.9 @ 120VAC 60Hz max load
Temperature Range
0C (32F) to 40C (104F) degrees
Dimming
1-100%
Weight
0.60 lbs
Width
2.12 Inch
Length
1.37 Inch
Height
4.13 Inch
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
Location Rating
Dry
Indoor
Y
Outdoor
N
ROHS
N
FCC
Y
Class 1
N
Class 2
Y
Class II
N
Part Number Length Input Voltage Wattage UOM
PZM-SWX12V-120V-60 1.37 Inch 120V AC 60 W Each
