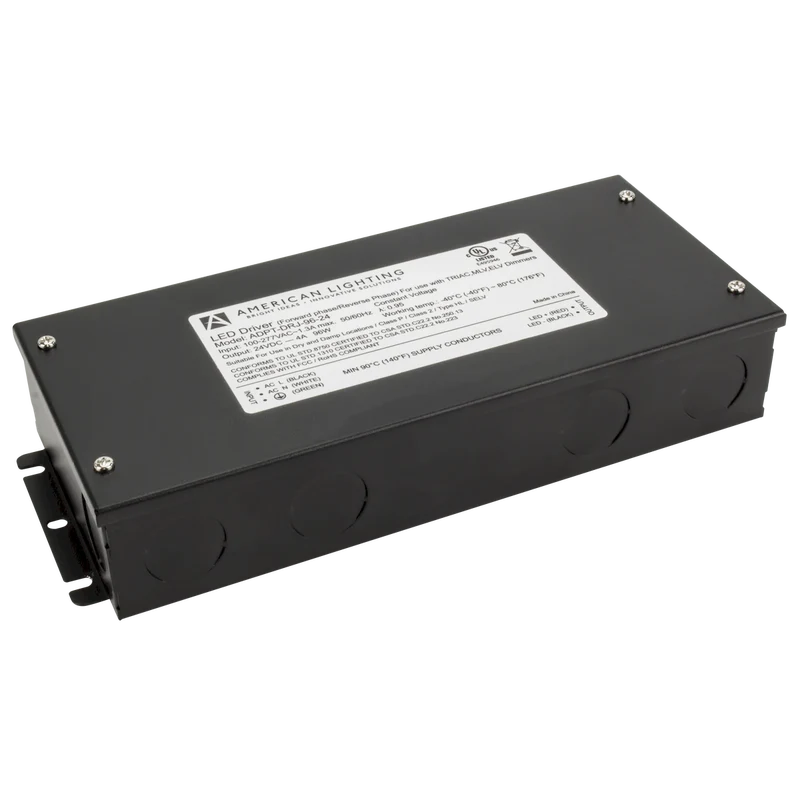

Adaptive Driver with Enclosed Leads and Knockouts 96 Watts 24V DC
SKU
Add to Compare
PZM-DRJADPT24V-96
The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.
24V DC Constant voltage 96W hardwire LED driver
Dimmable with ELV, MLV, & Incandescent TRIAC dimmers
Features integrated wiring compartments for line and low voltage
Forward phase & reverse phase compatible
Short circuit, over-load, and over temperature protections
Slim compact housing design - Less than 1-5/8" in height
Class II / cULus Listed - Wet location rated
Input Voltage
100-277V AC
Output Voltage
24V DC
Output Frequency
4A
Wattage
96 W
Power Factor
0.98@120V 0.96@277V
Minimum Load
9.6 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black
Weight
3.00 lbs
Width
3.54 Inch
Length
8.66 Inch
Height
1.61 Inch
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
Y
Type Non-IC
N
Airtight
N
Location Rating
Wet
Indoor
Y
Outdoor
N
ROHS
N
FCC
Y
Class 1
N
Class 2
Y
Class II
N
| Part Number | Length | Input Voltage | Wattage | UOM |
|---|---|---|---|---|
| PZM-DRJADPT24V-96 | 8.66 Inch | 100-277V AC | 96 W | Each |
Specification Sheets
