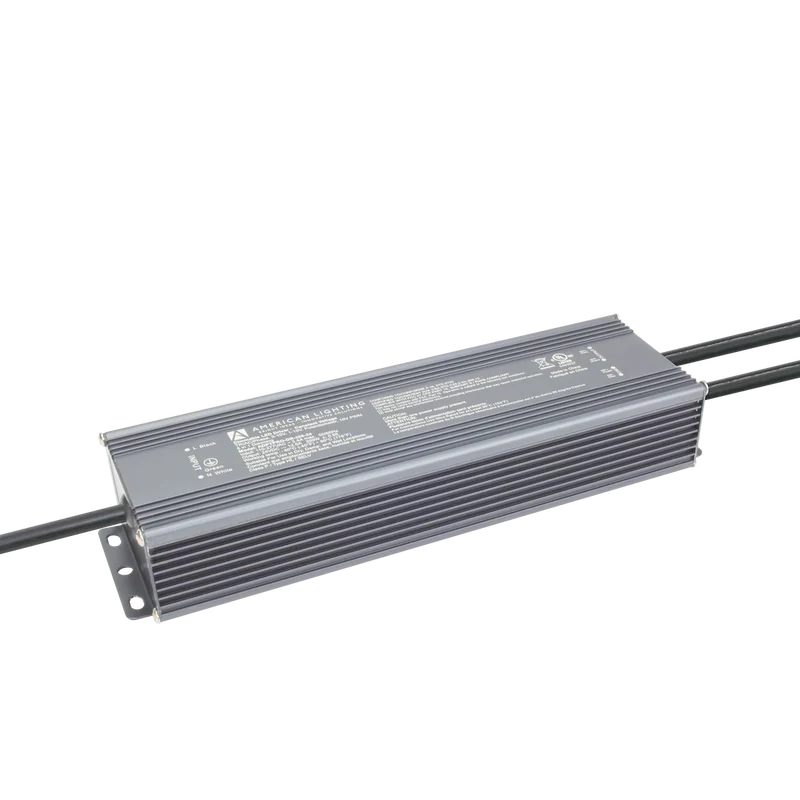

Adaptive PRO Driver 300 Watts 24V DC
SKU
Add to Compare
PZM-DRADPTPRO24V-300
The Adaptive Pro 5-in-1 dimmable drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a sealed low profile aluminum enclosure Suitable for outdoor locations.
24V DC Constant voltage 300W hardwire LED driver
5-in-1 Forward and Reverse Phase Dimming:
ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer
Class I metal housing (Type HL)
8” (SJTW) Lead & Tail Wire
Short circuit, over-load, and over temperature protections
Class P / Type HL / FCC Compliant
cULus Listed - Wet location rated
Input Voltage
100-277V AC
Output Voltage
24V DC
Input Frequency
47-63 Hz
Output Frequency
2.5A
Wattage
300 W
Power Factor
0.99@120VAC 0.95@277VAC
Minimum Load
30 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black
Weight
3.90 lbs
Width
3.07 Inch
Length
10.8 Inch
Height
1.85 Inch
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
Y
Type Non-IC
N
Airtight
Y
Location Rating
Wet
Indoor
Y
Outdoor
Y
ROHS
N
FCC
Y
Class 1
N
Class 2
N
| Part Number | Length | Input Voltage | Wattage | UOM |
|---|---|---|---|---|
| PZM-DRADPTPRO24V-300 | 10.8 Inch | 100-277V AC | 300 W | Each |
Specification Sheets
