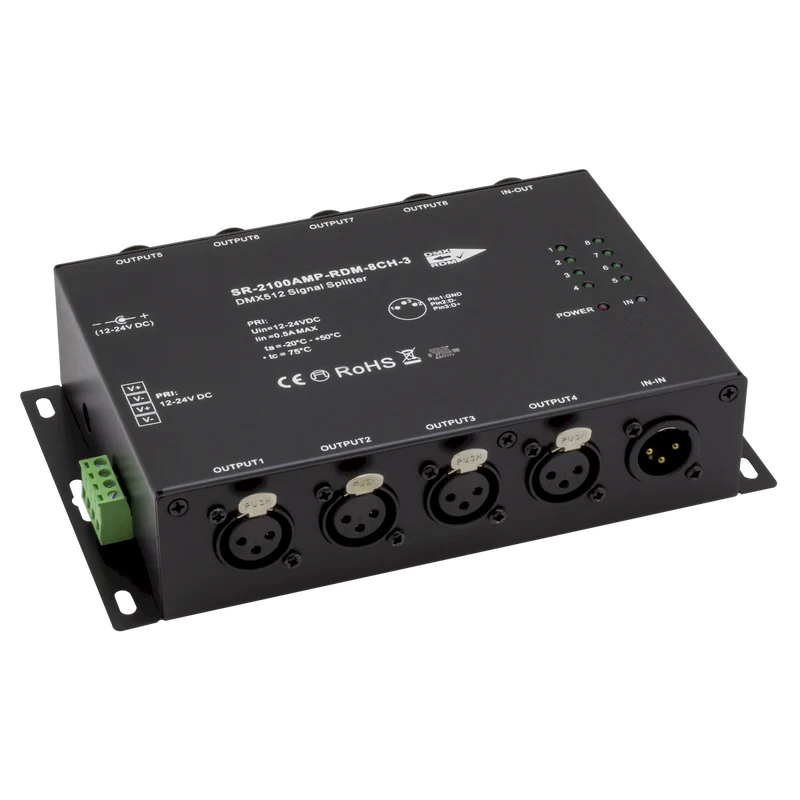

DMX 8 way Splitter with RDM
SKU
Add to Compare
PZM-DMX-SPLIT8-RDM
Designed for larger DMX installations, the isolated DMX Splitter allows for up to 8 independent runs and pass-through of DMX signal with 3-pin XLR connectors allowing each output to support up to 32 devices. Additionally, supports bi-directional communication of Remote Data management protocol for managing compatible RDM/DMX device discovery, profile settings, status monitoring & DMX addressing.
- Extend cable distance as well as total number of devices
- DMX 512 signal control (RDM capable)
- Features 3-pin XLR input with eight 3-pin XLR outputs
- Up to 32 devices per output up to 256 total
- Feed-through XLR connector provided at input allowing for splitter to be placed into existing DMX chain
- Each output is fully isolated from input and other outputs
- Dry location indoor use
Input Voltage
12-24V DC
Temperature Range
-20C (4F) to 50C (122F) degrees
Finish
Black
Weight
1.63 lbs
Width
4.92 Inch
Length
7.85 Inch
Height
1.73 Inch
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
ROHS
N
Class 2
N
Part Number | Length | Input Voltage | UOM |
---|---|---|---|
PZM-DMX-SPLIT8-RDM | 7.85 Inch | 12-24V DC | Each |
