IP67 DMX512 Decoder
SKU
Add to Compare
PZM-DEC-DMX-IP67

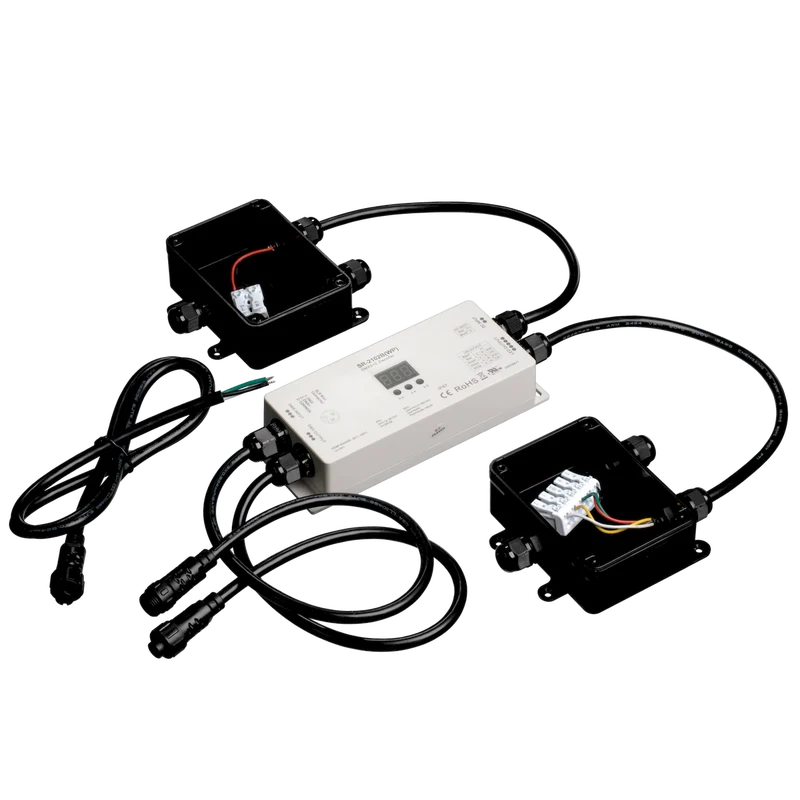

The DMX 4-Channel IP67 Decoder is suitable for outdoor or damp location applications and translates DMX signals into the PWM control signal used by RGB and RGBW LED lighting. Allowing for flawless integration into new and existing DMX installations, you are no longer limited to just DMX fixtures, seamlessly integrate color changing neon or tape light with ease for temporary or permanent applications.
- 4-channel capable output (5A per channel max)
- Compatible with single color, tunable, RGB, and RGBW neon or tape light
- Features easy IP67 XLR DMX cable connections
- Link or extend multiple decoders with IP67 linking cables
- 8 bit or 16 bit PWM output resolution ratio
- IP67 outdoor rated for wet location installations
- Requires 12-36V DC input and DMX controller for operation
- Includes (2) waterproof junction boxes for wire connections
Input Voltage
12-36V DC
Output Voltage
12-36V DC
Input Frequency
DMX
Output Frequency
SPI
Wattage
180 W
Temperature Range
-20C (-4F) to 50C (122F) degrees
Finish
White
Control
DMX
Weight
2.20 lbs
Width
2.87 Inch
Length
7.125 Inch
Height
1.5 Inch
Safety Rating
cURus Recognized
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
IP Rating
IP67
Location Rating
Wet
Indoor
Y
ROHS
N
FCC
Y
Class 2
N
| Part Number | Length | Input Voltage | Wattage | IP Rating | UOM |
|---|---|---|---|---|---|
| PZM-DEC-DMX-IP67 | 7.125 Inch | 12-36V DC | 180 W | IP67 | Each |
