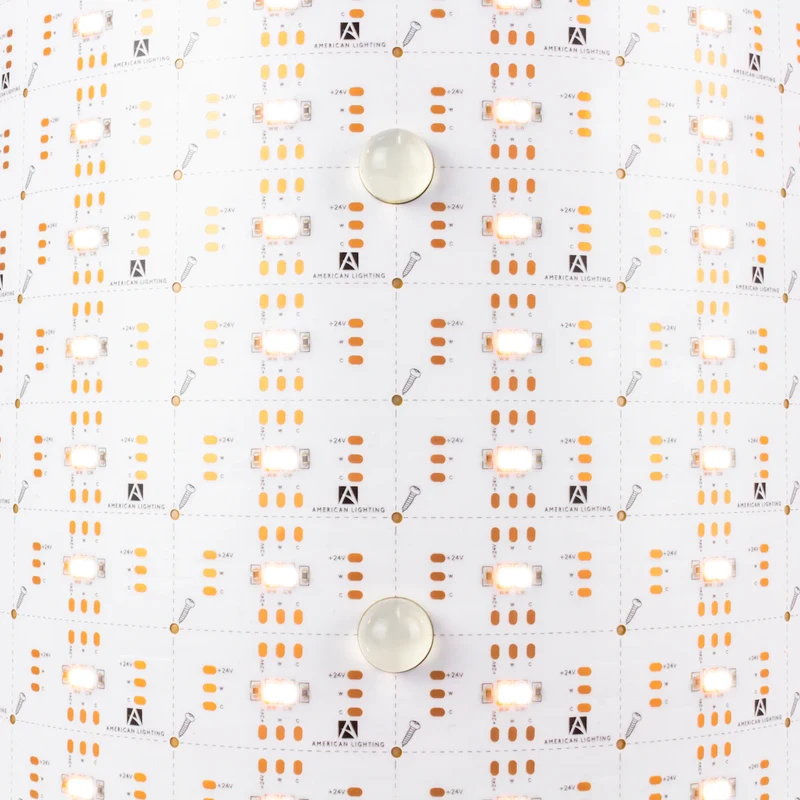

Canvas Sheet 12x24 Tunable White
SKU
Add to Compare
PZM-CNVS-54-24V-TW-12x24
The Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.
- Tunable CCT 2700K to 6000K Color Tuning
- Ideal for backlighting semi-translucent materials
- Up to 1800Lm output performance per sheet
- Available in 12”H x 24”W sheet size
- Field cuttable on-site for an accurate fit
- 2” x 1” Cuttability and LED spacing
- 3M peel and stick backing for quick installation

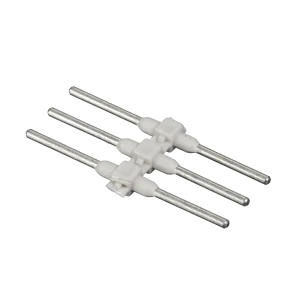

- Built-in terminal ports make it easy to run power from any side
- Integrated 1/2” stand-offs spaced every 8 inches:
Each Stand-off is rated up to 35lb load rating (220lbs per sheet) - 50,000 hours rated life / 5-year limited warranty
Input Voltage
24V DC
UV Inhibitor
N
CCT
2700K-6000K
CRI
90+
Lumens
1800
Cut Increment
2 X 1 in
Max Run
96 W
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 45C (113F) degrees
Dimming
PWM 5 - 100%
Quantity
2
Spacing
1 Inch x 1 Inch
Weight
1.90 lbs
Width
12 Inch
Length
24 Inch
Height
0.47 Inch
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
IP Rating
IP54
Location Rating
Damp
Indoor
Y
ROHS
N
Class 2
N
Class II
N
| Part Number | Length | Input Voltage | CCT | CRI | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| PZM-CNVS-54-24V-TW-12x24 | 24 Inch | 24V DC | 2700K-6000K | 90+ | 1800 | 96 W | IP54 | CS2 |
