Canvas Sheet 12x24 50K
SKU
Add to Compare
PZM-CNVS-54-24V-50K-12x24

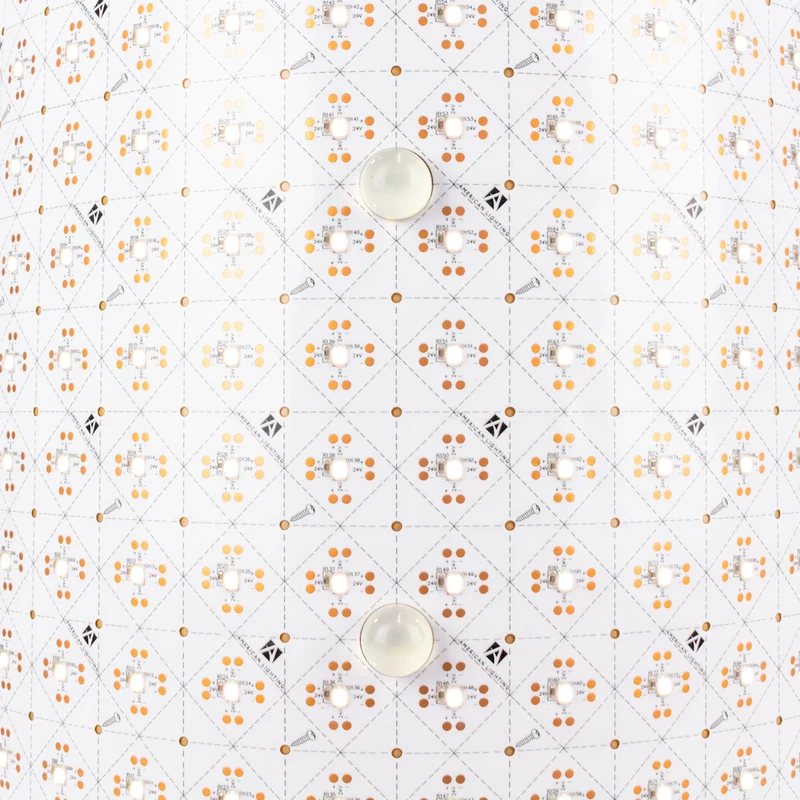

Pack of 2: 12" x 24" IP54 LED Sheet, 5000K, 8 connectors/sheet, (4) 12� pieces of appropriate 18AWG wire, 6 Bumpers/sheet, 1 power connection(61 cm 20WAG wire with male connector), 1 cable management clip
Input Voltage
24V DC
UV Inhibitor
N
Wattage
20 W
CCT
5000K
CRI
90+
Lumens
2050
Cut Increment
1 X 1 in
Max Run
96 W
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 45C (113F) degrees
Dimming
PWM 5 - 100%
Quantity
2
Spacing
1 Inch x 1 Inch
Weight
1.90 lbs
Width
12 Inch
Length
24 Inch
Height
0.47 Inch
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
IP Rating
IP54
Location Rating
Damp
Indoor
Y
ROHS
N
Class 2
N
Class II
N
| Part Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PZM-CNVS-54-24V-50K-12x24 | 24 Inch | 24V DC | 5000K | 90+ | 20 W | 2050 | 96 W | IP54 | CS2 |
