Canvas Sheet 12x24 30K

SERIES
PZM-CNVS-54-24V-30K-12x24
Add to Compare

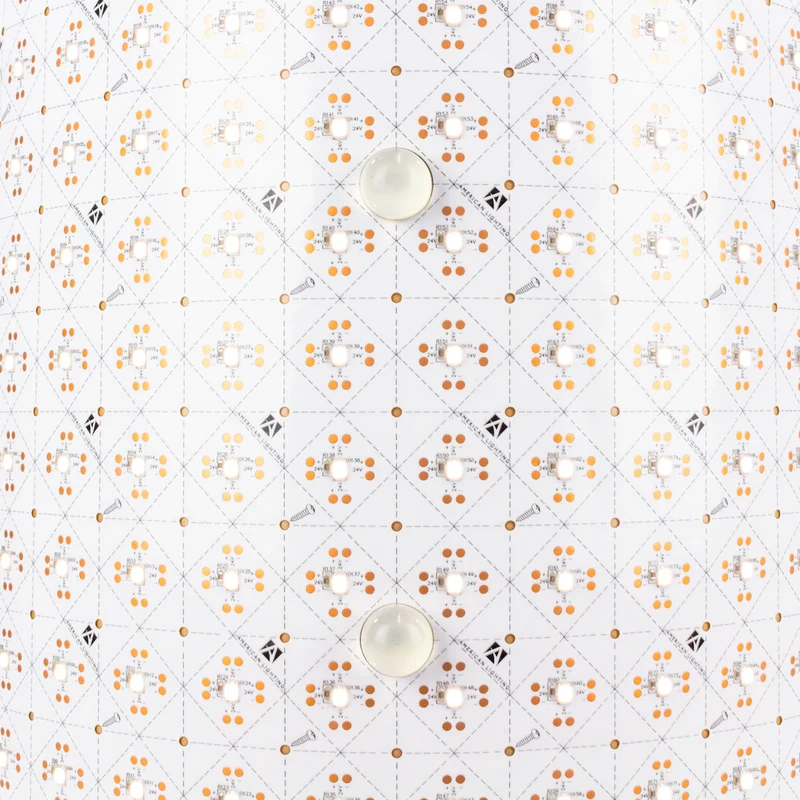

12" x 24" IP54 LED Sheet, 3000K, 8 connectors/sheet, (4) 12� pieces 18AWG wire, 6 Bumpers/sheet, 1 power connection (61 cm 20WAG wire with male connector), 1 cable management clip
Canvas Sheet 12x24 30K
Canvas Sheet 12x24 30K Canvas Sheet 12x24 30K
Input Voltage
24V DC
UV Inhibitor
N
CCT
3000K
CRI
90+
Lumens
1925
Cut Increment
1 X 1 in
Max Run
96 W
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 45C (113F) degrees
Dimming
PWM 5 - 100%
Quantity
2
Spacing
1 Inch x 1 Inch
Weight
1.9 lbs
Width
12 Inch
Length
24 Inch
Height
0.47 Inch
Safety Rating
cULus Listed
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
IP Rating
IP54
Location Rating
Damp
Indoor
Y
ROHS
N
Class 2
N
Class II
N
Part Number Length Input Voltage CCT CRI Lumens Max Run IP Rating UOM
PZM-CNVS-54-24V-30K-12x24 24 Inch 24V DC 3000K 90+ 1925 96 W IP54 CS2
