Artnet DMX Gateway
SKU
Add to Compare
PZM-ARTNET-DMX-GTWY

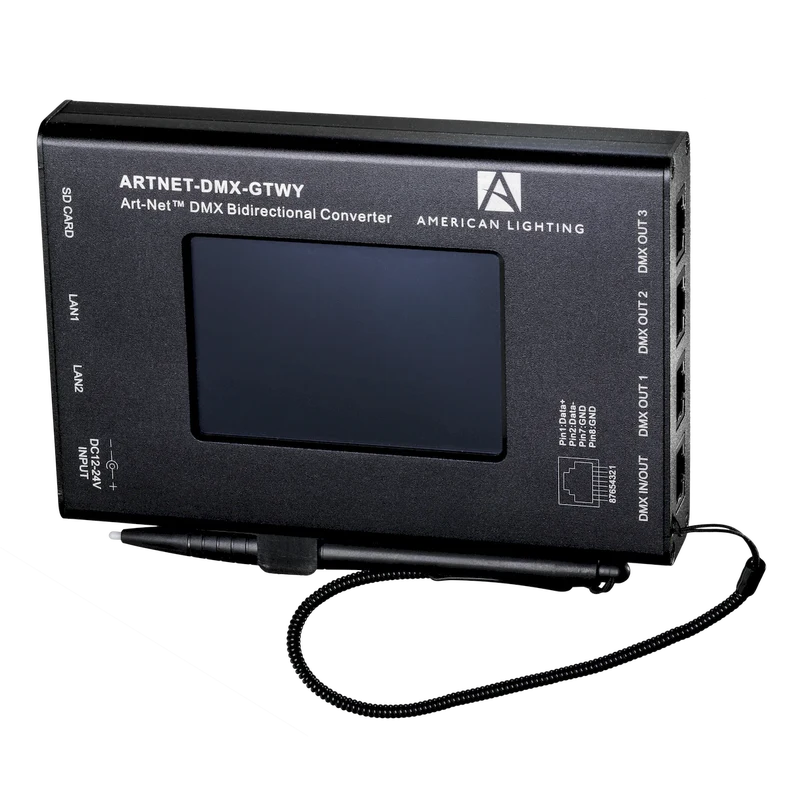

The Art-Net™ DMX Bidirectional Converter is an Ethernet to DMX adapter with integrated optical DMX splitter and Ethernet switch capability. It can be remotely configured and monitored through Art-Net™ supported PC software including Sunlite, DMX workshop, Luminair, Madrix, etc.
- Includes Control4® Simple Device Discovery Protocol (SDDP)
- Supports the lates Art-Net™ 4 Protocol
- Compatible with DMX512, DMX512-A, and Art-Net™
- 2x Ethernet ports and 4x RJ45 DMX ports
- Supports up to 4x Art-Net™ universes
- 3.5” LCD screen with touch control pen
- Recorder function and SD Card memory option
- PlayBack function under standalone mode
- TaskManager function to create schedules and operate under standalone mode
Input Voltage
12-24V DC
Temperature Range
-20C (-4F) to 50C (122F) degrees
Finish
Black
Weight
3.33 lbs
Width
0.08 Foot
Length
12.5 Foot
Height
0.32 Foot
Energy Star
N
DLC
N
Title 20
N
Title 24
N
Type IC
N
Type Non-IC
N
Airtight
N
ROHS
N
Class 2
N
| Part Number | Length | Input Voltage | UOM |
|---|---|---|---|
| PZM-ARTNET-DMX-GTWY | 12.5 Foot | 12-24V DC | Each |
Specification Sheets
Instruction Manuals
Template Downloads
Art-Net™ DMX Gateway & Control 4 driver
Training Video Art-Net integration with Control6
